PH-2B III
FAR INFRARED SAUNA WRAP
LOW-VOLTAGE FULL-ENCLOSURE INFRARED ENERGY WRAP
3 Heating Zone: Targeted Calorie Burn & Slimming

$535.00
Order Now

Compare Our Products With Formostar Far Infrared system for $9,000-$10,000

The Infrared Sauna Wrap PH-2BIII is a low-voltage FIR device, with 3 separately controlled heating zones, suitable for professional use at a spa, weight loss center or beauty salon. Sturdy and made for frequent operation. Provides a complete sauna experience. The Infrared Sauna Wrap is also portable and easy to clean, for travel or home use. The Direct heat from the blanket allows for gentle radiant relaxation of the muscles and controlled perspiration.

INFRARED SAUNA WRAP PH-2BIII USER MANUAL

INFRARED SAUNA WRAP PH-2BIII COMPOSITION AND FUNCTIONS

PANEL DISPLAY AND FUNCTIONS OF THE KEYS

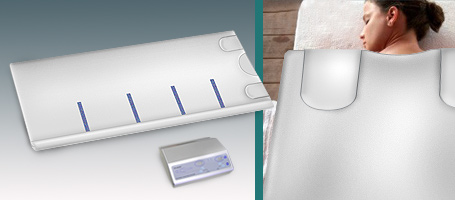

The Infrared Sauna Wrap PH-2BIII is composed of a control box, a thermal blanket, a main power lead and 3 connection leads. The control box keeps a memory of the last settings used

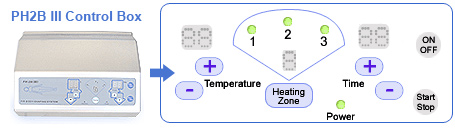

PH-2BIII PANEL DISPLAY AND FUNCTIONS OF THE KEYS:

 ON/OFF Switch the system 'ON' or 'OFF'
 Channel Key Select the respective body zones (1-2-3). One or more zones can be targeted in a sauna session.
 Temperature Key () Press to increase or press to decrease the temperature, 1 °C for   each time pressed.
 Timer Key ( ) Press to increase or press to decrease the time, 5 minutes for each time pressed.
 Overload Display Overload indicator lights when the power surpasses 300W, and the alarm buzzer will sound.
 Start/Stop Key Press Start/Stop key to start or stop the device after setting the   temperature and timer.

INFRARED SAUNA WRAP PH-2BIII OPERATION PROCEDURE:

  1. Place the Infrared SAUNA WRAP on a flat surface, such as the bed or floor.

  2. Wrap your body in the blanket. If a massage or body oil is used, then it is recommended to first wrap the body in a plastic film or sheet to protect the thermal blanket.

  3. Put the control box on a flat surface such as a table and insert the plug into the main power socket.

  4. Connect the leads labeled ‘1’ and ‘2’ between the control box and the thermal blanket. Connect lead ‘1’ to jack ‘1’ and lead ‘2’ to jack ‘2’, otherwise the heating system will not work.

  5. Turn the main power switch on at the rear of the control box. The red ‘Power’ indicator on the control panel will light. The device has not started working yet.

  6. Press the ‘ON/OFF’ key to start setting the temperature and the timer. The Channel key shows ‘1’ (body zone 1).

  7. Press ‘Timer’ to set the working time. For each press, the time will increase or decrease by 5 minutes.

  8. Press ‘Temperature’ to set the working temperature. For each time pressed, the temperature will increase or decrease by 1° Centigrade. Set the temperature to your specific requirements.

  9. Then press ‘Heating Zone’ key to change the zones. Repeat steps 6, 7, and 8 to set and start body zones 2 and 3.

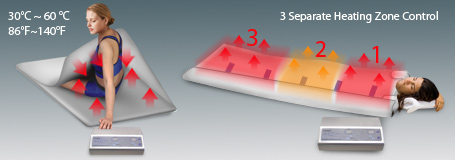

    Zone 1: Upper body and limbs (suggested temperature 38° C)
    Zone 2: Mid body (suggested temperature 44° C)
    Zone 3: Lower body and limbs (suggested temperature 42° C)

  10. Press ‘Start/Stop’ key. The green indicator will light, showing that heating has started.

  11. When the heating timer counts down to ‘0’, a signal will sound three times and the digital timer will display ‘0’ showing the heating has finished.

  12. After using, pull the plug out from the power source.

  13. If at any time you need to stop the session, just press the ‘Start/Stop’ key. When the green indicator goes off, the system has stopped working.

  14. Fold the blanket and store it in a dry and cool place.

Other Suggested Use:

  1. When the room temperature is lower than 20 °C, you may preheat the blanket for 10 minutes prior to use.

  2. It is suggested that you are well hydrated by drinking a glass of water prior to using.

INFRARED SAUNA WRAP PH-2BIII TECHNICAL SPECIFICATIONS

Input Volts
100V ~120V 60Hz / 220V ~240V 50Hz
Output Volts
DC36V
Input Power
300W
Materials
Made of Nylon, covered by a layer of PU (polyurethane) fabric, with heating elements of Space Carbon Fiber
Control Panel
Manual Control
Heating Zones
3
Temperature 30°C ~ 60 °C
Separate Heating Zone Controls
YES
Timer 0~95 minutes
Folded Size
187 x 70 cm / 72" x36 1/4"
Unfolded Size
180 x 195 cm
Net Weight
8.3kg
Warranty
1 year



Infrared Sauna Wrap PH-2BIII
Infrared Sauna Wrap PH-2BIII                     $535.00

Out of Stock

Free Shipping To 48 Lower States In USA

Understanding Far Infrared Technology

Other Far Infrared Products:
FIR Mattresses|FIR Sauna Domes|FIR Portable Saunas|FIR Body Wraps

These Infrared Heat Devices are not medical products. Not intended to diagnose, treat, cure or prevent any disease. If you are uncertain whether you can use any of these products, please consult your physician before using it. The information and statements made are for education purposes and are not intended to replace the advice of your family doctor.
